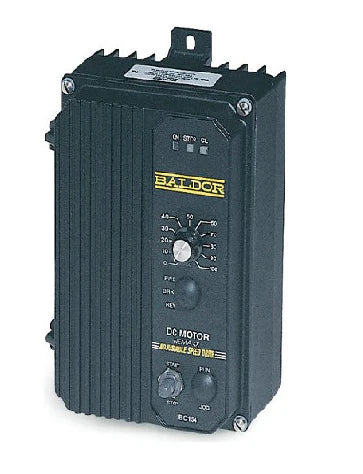

Baldor Fractional HP DC Speed Control, 1 Max HP, NEMA 4X, BC354

The Baldor-Reliance Fractional HP DC Speed Control BC354 is a versatile and durable solution for operating permanent magnet or wound field motors with precision and reliability. With a NEMA 4X enclosure and a max horsepower rating of 1 HP, this speed control is engineered for demanding environments requiring robust performance and advanced control features.

Key Features:

• Versatile Compatibility: Designed for permanent magnet and shunt-wound DC motors.
• Adjustable Control Options: Includes settings for acceleration, deceleration, current limit, IR compensation, and speed range (minimum and maximum).
• Enhanced Safety: Anti-demag circuit protects PM motors and SCR power bridge from direct shorts.
• Noise Rejection Circuit: Eliminates false starts and prevents SCR damage for reliable operation.
• User-Friendly Interface: 5K speed potentiometer (POT) for easy and precise speed adjustments.
• Compact Design: Dimensions of 9.5 in (height), 5.9 in (width), and 5 in (depth), perfect for space-saving installations.

Applications:

• Ideal for industrial and commercial operations requiring precise DC motor speed control.
• Suitable for conveyors, mixers, pumps, and fractional horsepower motor-driven equipment.
• Perfect for environments where water, dust, or corrosive substances are present, thanks to the NEMA 4X enclosure.

Specifications:

• Max Horsepower: 1 HP
• Input Voltage: 115/230V
• Enclosure Type: NEMA 4X
• Control Type: Analog
• Input Phase: Single Phase
• Cooling Type: Convection
• Operator Interface: Speed POT
• Certifications: UL, cUL, CSA, CE approved

Upgrade your motor systems with the precision and durability of the Baldor-Reliance Fractional HP DC Speed Control BC354.
