N700E-450LF

Hyundai N700E Variable Frequency Drive

, 1or3 Phase In, 230V, 60 HP, 170 Amps

Constant Torque or 75 HP, 205 Amps

Variable TorquE

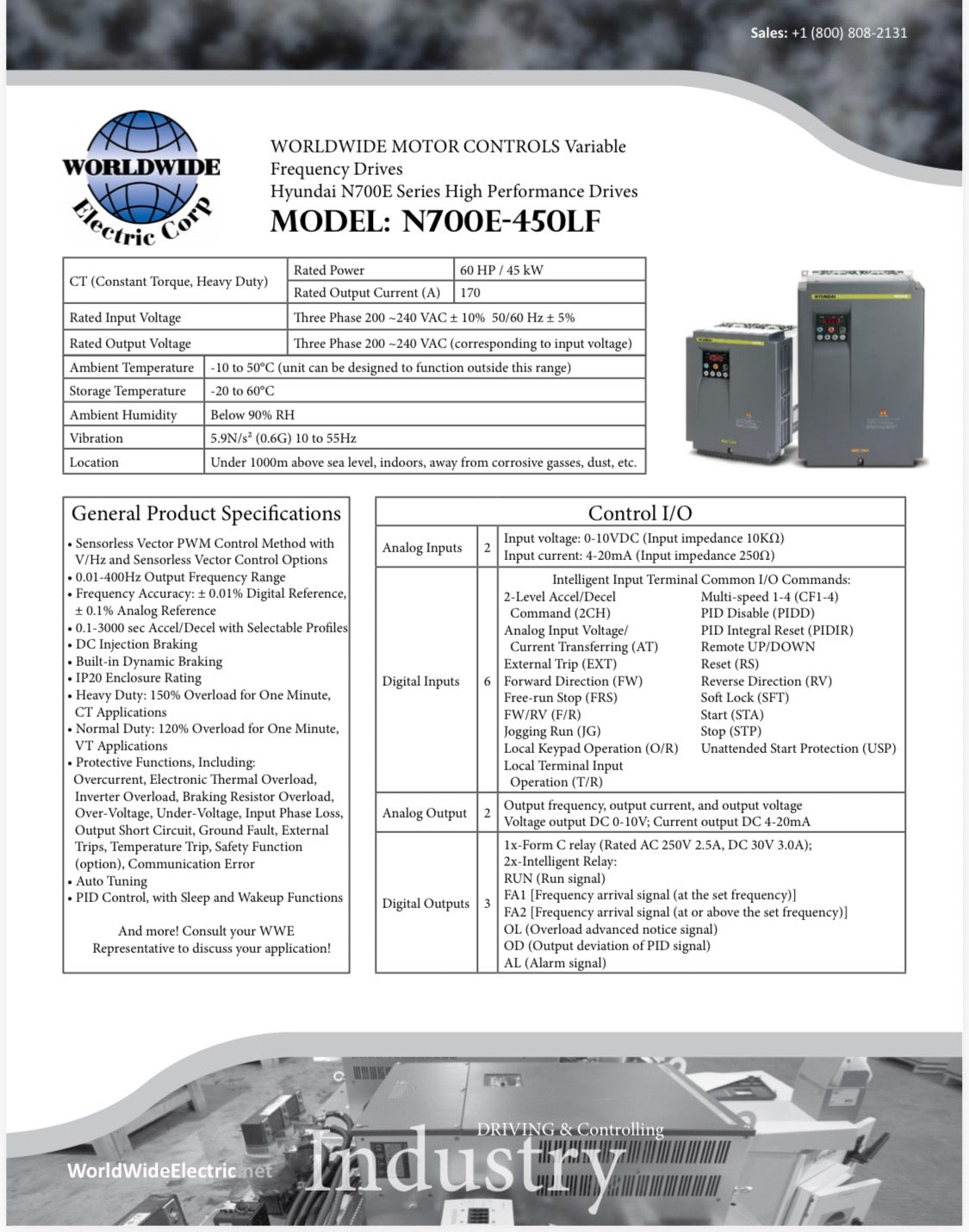

WORLDWIDE MOTOR CONTROLS Variable

Frequency Drives

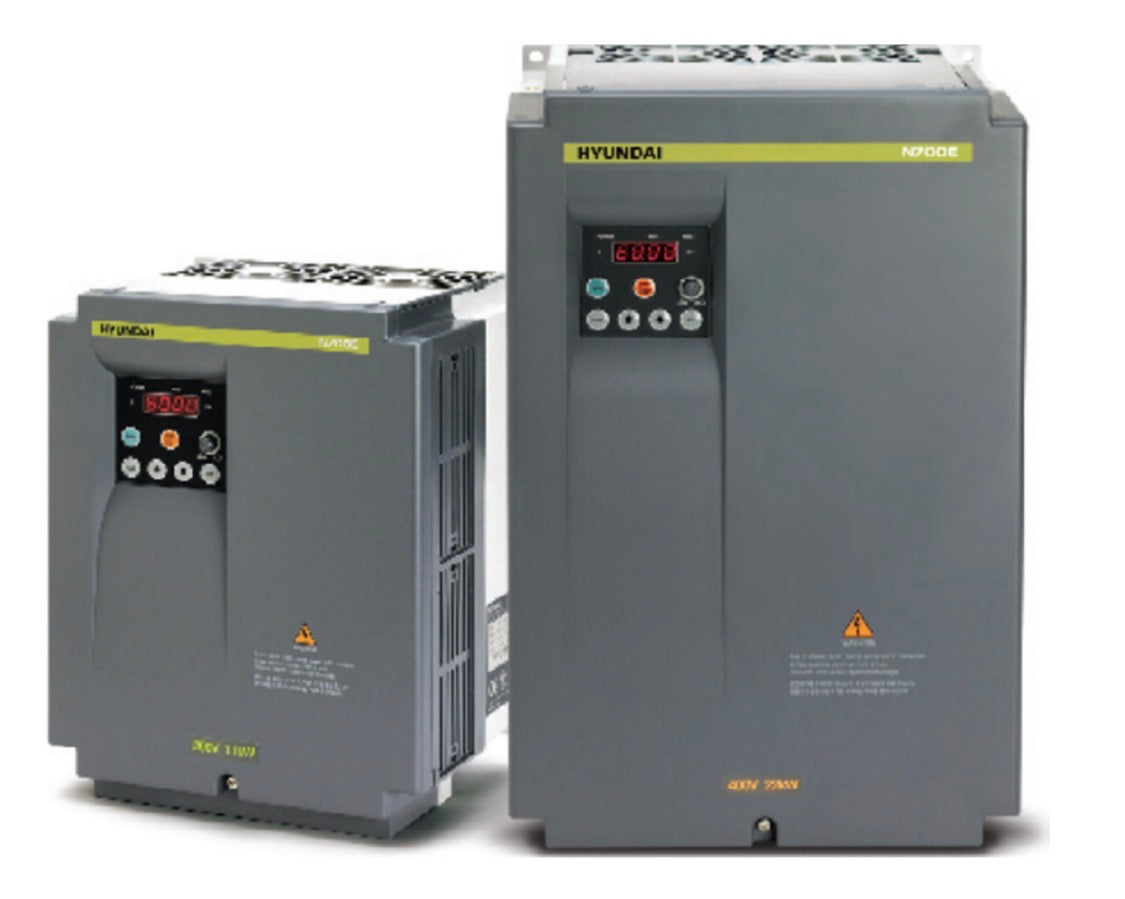

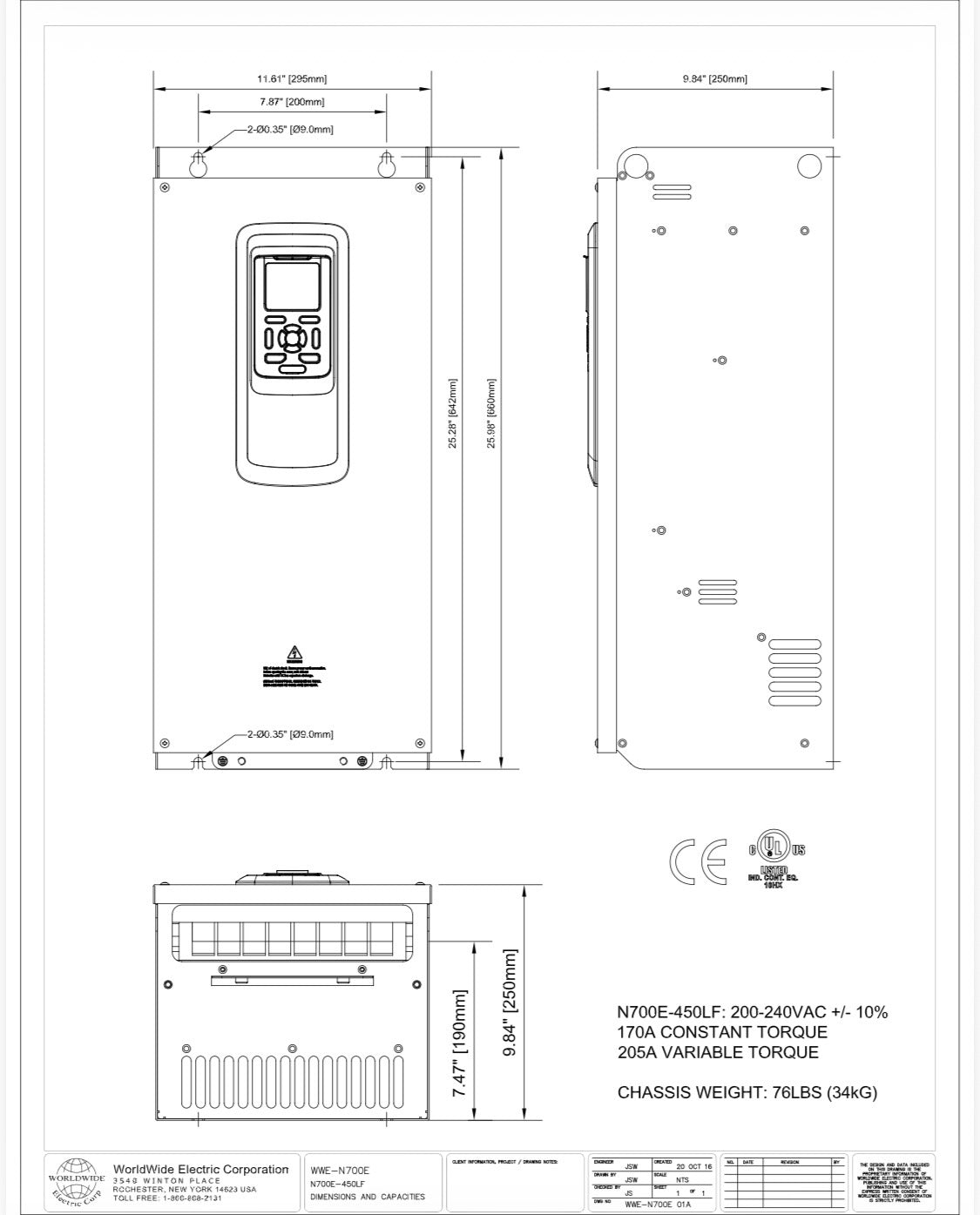

Hyundai N700E Series High Performance Drives

Model: N700E-450LF

CT (Constant Torque, Heavy Duty)

Rated Power 60 HP / 45 kW



Rated Output Current (A)

Rated Input Voltage

Three Phase 200 ~240 VAC ± 10% 50/60 Hz ± 5%

Rated Output Voltage

Three Phase 200 ~240 VAC (corresponding to input voltage)

Ambient Temperature

-10 to 50°C (unit can be designed to function outside this range)

Storage Temperature

-20 to 60°C

Ambient Humidity

Below 90% RH

Vibration

5.9N/s² (0.6G) 10 to 55Hz

Location

Under 1000m above sea level, indoors, away from corrosive gasses, dust, etc.



General Product Specifications

• Sensorless Vector PWM Control Method with

V/Hz and Sensorless Vector Control Options

• 0.01-400Hz Output Frequency Range

• Frequency Accuracy: ± 0.01% Digital Reference,

± 0.1% Analog Reference

• 0.1-3000 sec Accel/Decel with Selectable Profiles

• DC Injection Braking

• Built-in Dynamic Braking

• IP20 Enclosure Rating

• Heavy Duty: 150% Overload for One Minute,

CT Applications

• Normal Duty: 120% Overload for One Minute,

VT Applications

• Protective Functions, Including:

Overcurrent, Electronic Thermal Overload,

Inverter Overload, Braking Resistor Overload,

Over-Voltage, Under-Voltage, Input Phase Loss,

Output Short Circuit, Ground Fault, External

Trips, Temperature Trip, Safety Function

(option), Communication Error

• Auto Tuning

• PID Control, with Sleep and Wakeup Functions

And more! Consult your WWE

Representative to discuss your application!

Analog Inputs Digital Inputs 6

Analog Output Digital Outputs 3

Control I/O

2 Input voltage: 0-10VDC (Input impedance 10KΩ)

Input current: 4-20mA (Input impedance 250Ω)

Intelligent Input Terminal Common I/O Commands:

2-Level Accel/Decel Multi-speed 1-4 (CF1-4)

Command (2CH) PID Disable (PIDD)

Analog Input Voltage/ PID Integral Reset (PIDIR)

Current Transferring (AT) Remote UP/DOWN

External Trip (EXT) Reset (RS)

Forward Direction (FW) Reverse Direction (RV)

Free-run Stop (FRS) Soft Lock (SFT)

FW/RV (F/R) Start (STA)

Jogging Run (JG) Stop (STP)

Local Keypad Operation (O/R) Unattended Start Protection (USP)

Local Terminal Input

Operation (T/R)

2 Output frequency, output current, and output voltage

Voltage output DC 0-10V; Current output DC 4-20mA

1x-Form C relay (Rated AC 250V 2.5A, DC 30V 3.0A);

2x-Intelligent Relay:

RUN (Run signal)

FA1 [Frequency arrival signal (at the set frequency)]

FA2 [Frequency arrival signal (at or above the set frequency)]

OL (Overload advanced notice signal)

OD (Output deviation of PID signal)

AL (Alarm signal)
